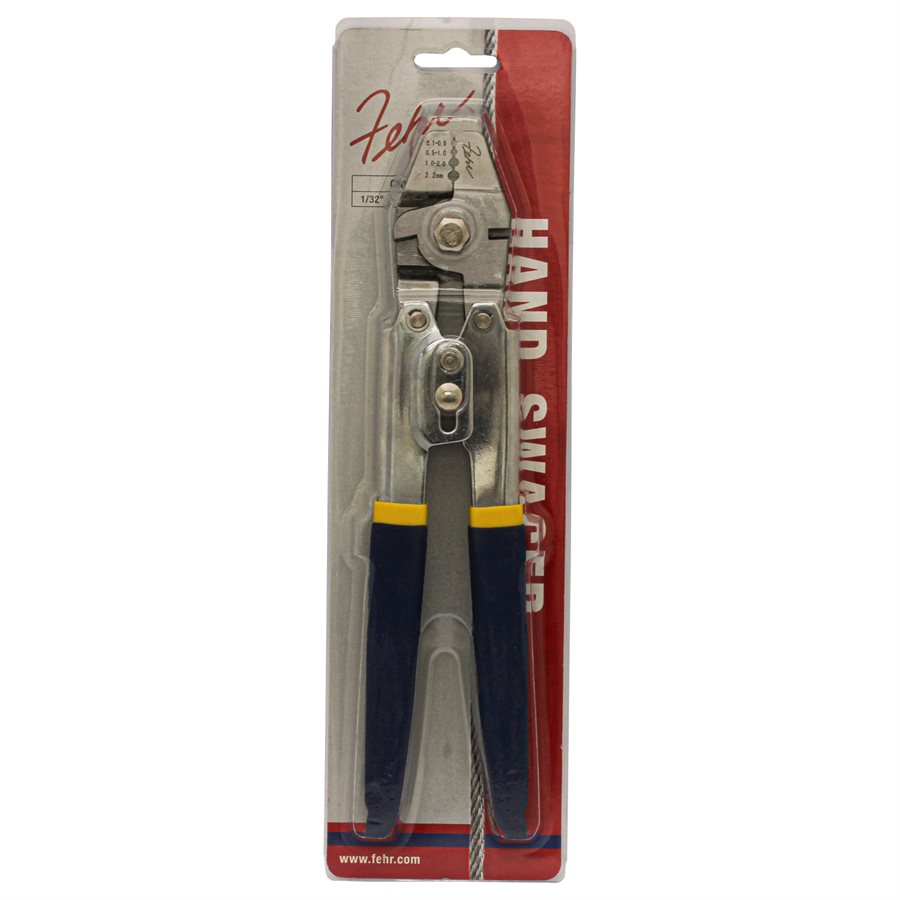

Fehr 4 Cavity Mini-Hand Swaging Tool for Up to 1/16 in Fittings

Fehr Mini Hand Swager with Cutting Function for 1/32 in, 3/64 in and 1/16 in Steel Cable Fittings
  • 2 reliable side cutters, and self-locking mechanism for easy use
  • Made of heavy duty stainless steel for maximum corrosion resistance
  • Comes with EVA double dipped foam handles
  • Swaging/Crimping up To 1/16 in steel cable ferrules
Weight: 0.3kg / 0.7pound
Length: 250mm / 9.85 in

Fehr 4 Cavity Mini-Hand Swaging Tool for Up to 1/16 in Fittings

Click to enlarge

TI062-Z
TI062_d-Z
TI062_b-Z

Product Specifications

Code:

TI062

Tool Type

Cable Swagers

Vendor

Fehr

Additional Product Info

Additional Specifications

SWAGER OPERATING INSTRUCTIONS
Cable Size Number of Compressions
1/32″ 1
3/64″ 1
1/16″ 1

  1. Examine swager to make sure there are no broken parts and that all nuts and bolts are tight.

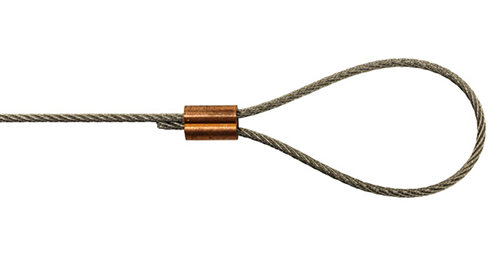

  2. Cut cable to the required length and insert into the sleeve or stop, leaving a tail that is equal or greater than the diameter of the cable.
  3. Identify the proper cavity on the tool that is designed for the same size sleeve and insert into the cavity properly.

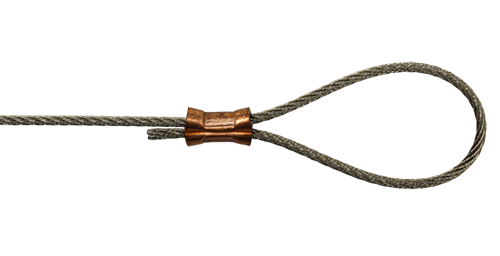

  4. Compress the sleeve into the cable.

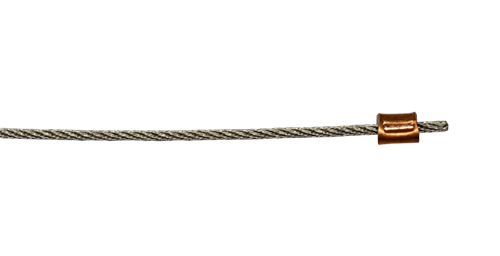

  5. A stop can be swaged on the end using the same technique.

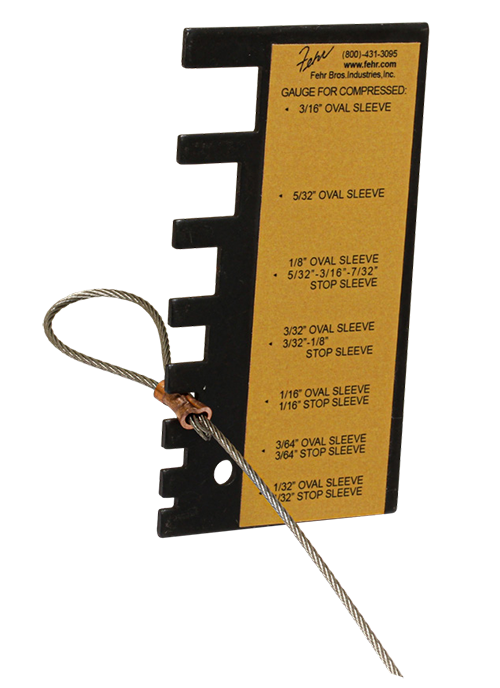

  6. Utilize the supplied gauge to ensure your swager is compressing the sleeve entirely. If the sleeve will not fit into the correct slot on your gauge, compress the sleeve again.

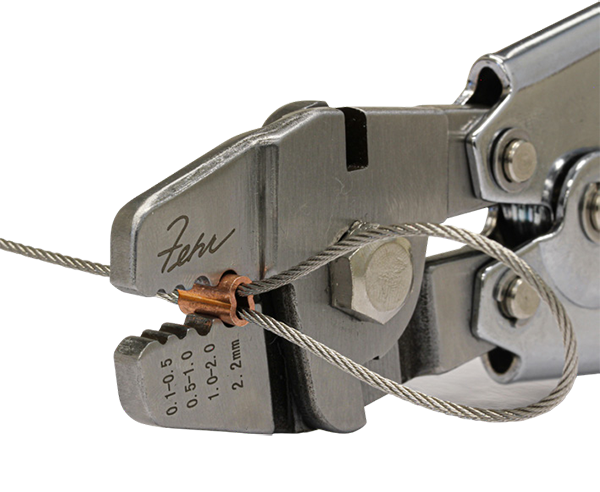

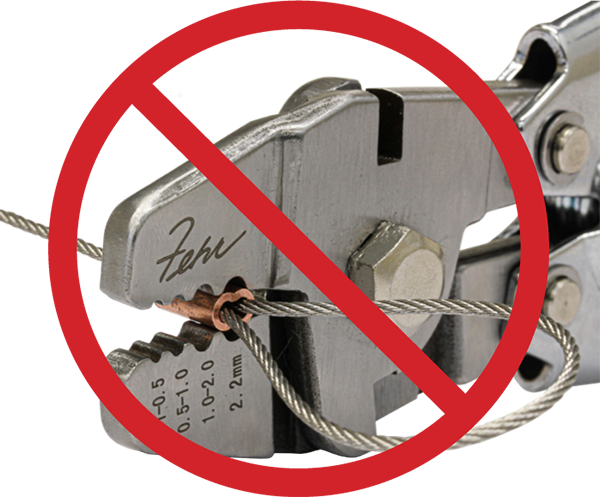

Correct Incorrect

Product Downloads

Download Resource

Swage-Tool-Instructions.pdf
