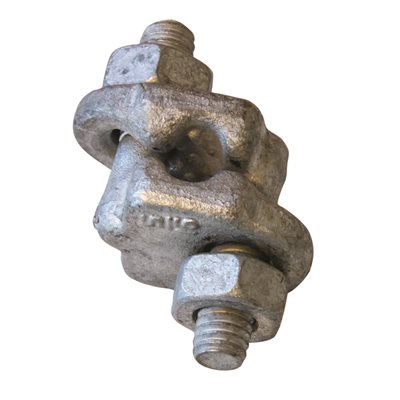

Double Saddle Grip Wire Rope Clip - 1/4 in

Double Saddle clips are galvanized to resist corrosion. Their design allows for quick installation and disassembly. They cannot be installed incorrectly and cause less damage to wire rope. Fewer clips are required per splice compared to U-Bolt clips. Meets the performance requirements of Federal Specification FF-C-450 Type III, Class 1.
Double Saddle Grip Wire Rope Clip - 1/4 in

Click to enlarge

Product Specifications

Code:

FG250

Finish

Hot Dip Galvanized

Size

1/4 in

Additional Product Info

Other Specifications

  • Intended for use in with right regular lay wire rope.

Safety Notice

Wire rope clips must be installed in accordance with the manufacturer’s specifications. For double saddle grip clips, ensure both saddles are evenly secured on the wire rope. These clips are suitable for specific applications and may not be appropriate for all load-bearing uses. Use the correct number of clips for the wire rope diameter and tighten all nuts to the recommended torque. Regularly inspect and re-torque after the initial load is applied. Improper installation or use can lead to rope slippage or failure, resulting in injury, death, or property damage. Not intended for overhead lifting or life-safety applications unless explicitly rated for such use.
