RailEasy 5/32 in Stud Assm w/Compression Jaw, T316 w/4.5 in Shaft X 2 Pcs
- Product #: S0980-0004X2
- Finish: Type 316 Stainless Steel
- Size: 5/32 in
- Weight: 0.24 lbs/ea
- Through-bolt post
- Indoor or Outdoor application
Product Specifications
Code:
S0980-0004X2
Pieces
2
Finish
Type 316
Railing Type
Tensioner
Additional Product Info
Additional Specifications
RailEasyTM Stud Assembly

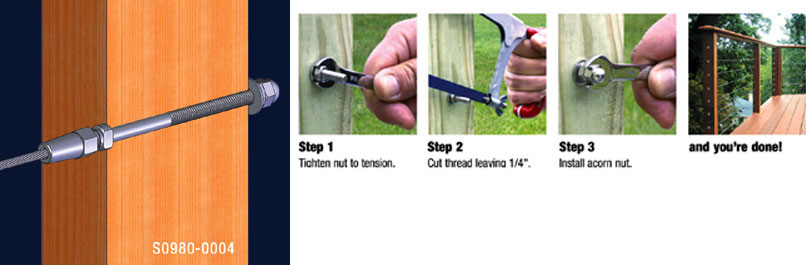

The RailEasy™ Stud Assembly is used for cable railing applications where a “through-post” look is desired. It is made from marine grade stainless steel for maximum durability and corrosion resistance and has a compression fitting for quick and easy installation. The assembly is used on straight and angled (30 degree stair spacer is available for angles upon request) runs by drilling through the post and fixing it to the back side. Tighten the locking nut to tension and cut off the excess thread to fit the acorn nut. Stainless steel and HandiSwage™ Cover Nut Sets are available.
Other Specifications
| A: | 5/32″ |
| B: | 1/4″ – 28 |
| C: | 4.5″ |
| D: | 1.50″ |
| QTY: | 1 |
