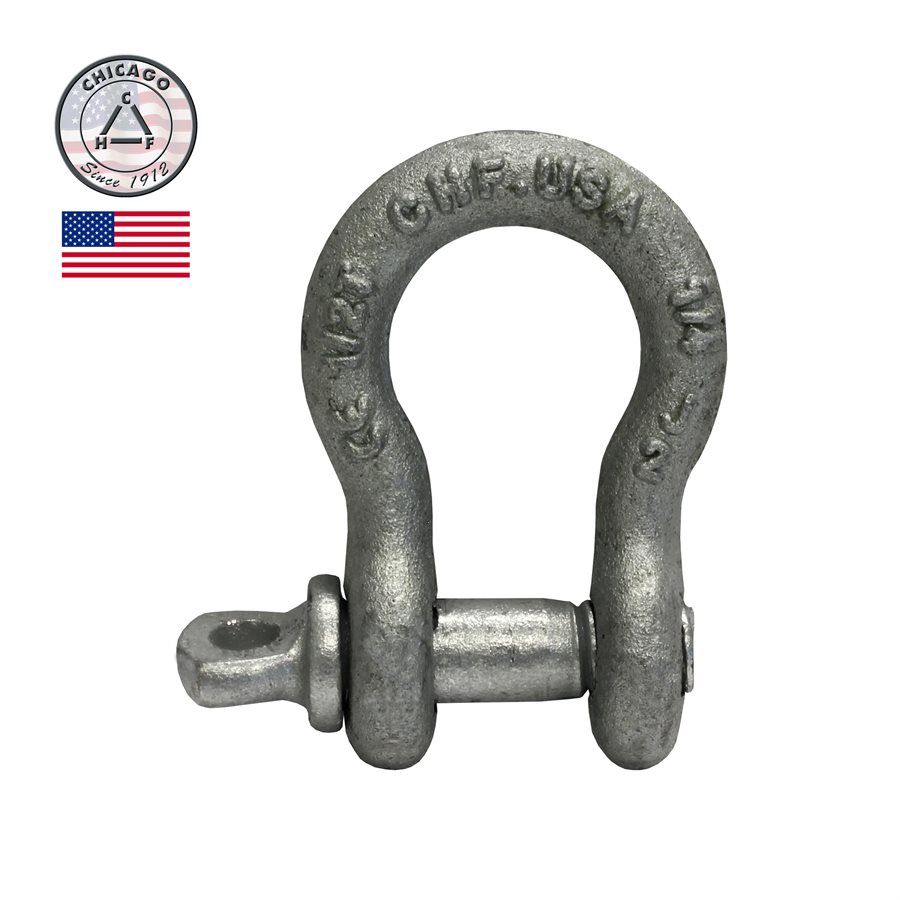

USA Made HDG Load Rated Screw Pin Anchor Shackle - 1/4 in

This high-quality screw pin anchor shackle is proudly made in the USA and hot-dip galvanized for superior corrosion resistance in demanding environments. Engineered with a load-rated design, it provides reliable performance for rigging, lifting, and securing applications. The screw pin allows for easy assembly and disassembly, making it ideal for both temporary and permanent connections.

  • Product #: THSPA250
  • Finish: Hot Dip Galvanized
  • Size: 1/4 in
  • Inside Length: 1.125 in
  • Throat Opening: 0.75 in
  • Pin Diameter: 0.312 in
  • Weight: 0.13 lbs/ea
  • Working Load Limit: 1000 lbs
  • Load-Rated
USA Made HDG Load Rated Screw Pin Anchor Shackle - 1/4 in

Click to enlarge

Product Specifications

Code:

THSPA250

Finish

Drop Forged Hot Dip Galvanized

Size

1/4 in

Shackle Type

Screw Pin Anchor

WLL

1000 lbs

Additional Product Info

Additional Specifications

Since 1912, the Chicago Hardware & Fixture Company has been manufacturing 100% made in the U.S.A. products. Fehr is proud to distribute Chicago, black oxide coated, drop forged anchor shackles. These forged shackles meet the strict requirements of the entertainment industry. Size, working load limit and trademark are permanently marked on all Chicago heat treated shackles. When tested all shackles are pulled at a uniform rate of speed in a direct tension.

Shackles meet the performance requirements of Federal Specifications RR-C-271D.

Fehr Brothers offers a variety of long lasting and robustly designed shackles to meet your needs including load rated anchor shackles, chain or ‘Dee’ shackles, safety shackles, commercial shackles, and a range of stainless steel shackles.

Safety Notice

  • Never exceed Working Load Limit.
  • Inspect Shackles regularly. Replace if worn, distorted or damaged.
  • Ensure pin is fully engaged.
  • Seize shackle pin with wire.
  • Use only Duty Rated Shackles, with embossed WLL, for overhead lifting.
